    Model No.:SC-ABC-3528Q

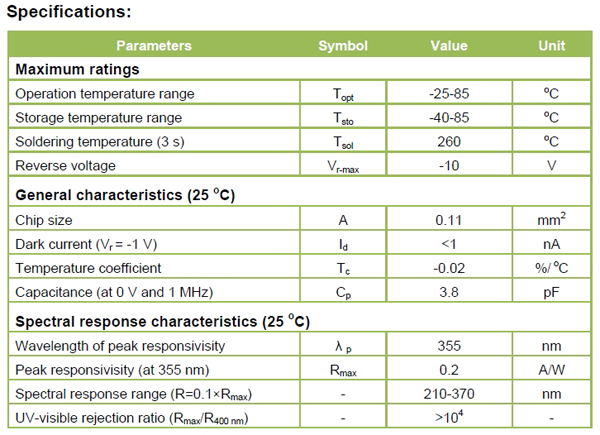

    Parameter:

    Chip size : 0.11mm²

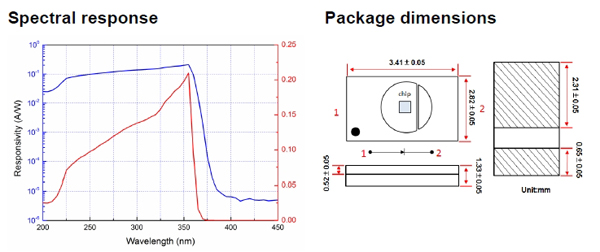

    Wavelength of peak responsivisity:355nm

    Peak responsivisity (at 355 nm):0.02A/W

    Spectral response range (R=0.1×Rmax): 210-370nm

    UV-visible rejection ratio (Rmax/R400 nm): >10∧4

    Dark current (Vr = -1 V):<1 nA
